YUANDA CABLES

Jiangyin Yuanda Electrical Material Co., Ltd. was established in November 2000, located in Qingyang Town, Jiangyin City, Wuxi City, Jiangsu Province, mainly produces wires and cables, has been involved in electronics, communications, automotive, wind power, construction machinery and other industries, has been identified as a high-tech enterprises, through the ISO9001, IATF16949 quality management system certification.

375000
km
Automotive Cable
160000
km
Coaxial Cable for Communication
8600000
km
High temperature resistant electronic wire

PRODUCTS

We can process all kinds of nonstandard cable according to the requirement of clients.

High Temperature Sleeve

Special Cable

 UL1015 PVC insulated wire

Temperature Range ：105℃
Nominal Voltage : 600V
Reference Standard : UL758,UL1581
Tinned or bare , strand or solid Copper Conductor , 30AWG-10AWG
PVC Insulation
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1、cULFT1 and JQAF-Mark Flame Test
UL/CUL Certificate No.：E216252

READ MORE 

 UL1330/1331 Fluoroplastic insulated wire

Nominal Voltage : 600V
Temperature Range ：-100℃~+200℃（1330） -100℃~+150℃（1331）
O.D. Tolerence : ±0.1mm
Testing Voltage :2500V
Conductor : Tinned Copper
Insulation：FEP Teflon
Color：White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.：E216252

READ MORE 

 UL3071 silicone rubber insulated and fiberglass braided wire

Nominal Voltage：600V
Temperature Range：-60℃~+200℃
Testing Voltage：6000V
Conductor：Tinned Copper
Insulation：Silicone Rubber
Sheath：Fiber Glass
Color：White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.：E216252

READ MORE 

 UL3604/3644 silicone rubber insulated wire

Nominal Voltage：600V/1000V
Temperature Range：-60℃~+150℃/-60℃~+200℃
Testing Voltage：6000V/10000V
Conductor：Bare or Tinned Copper
Insulation：Silicone Rubber
Color：White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL/CUL Certificate No.：E216252

READ MORE 

 UL3173 cross-linked polyolefin insulated wire

Nominal Voltage：600V
Temperature Range：125℃
Testing Voltage：6000V
Conductor：26-10AWG Bare or Tinned Copper
Insulation：XLPE
Color：White-Blue-Red-Black-Brown-Yellow-Green
UL/CUL Certificate No.：E216252

READ MORE 

 60245 IEC 03(YG) silicone rubber insulated and fiberglass braided wire

Nominal Voltage：300V/500V
Temperature Range：-60℃~+180℃
Testing Voltage：2000V
Conductor：Tinned Copper
Insulation：Silicone Rubber
Sheath：Fiber Glass
Color：White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Certificate：2011010104471475

READ MORE 

 VDE H05SJ-K silicone rubber insulated and fiberglass braided wire

Nominal Voltage：300V/500V
Temperature Range：-60℃~+180℃
Testing Voltage：2000V
Conductor：Bare or Tinned Copper
Insulation：Silicone Rubber
Sheath：Fiber Glass
Color：White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Certificate：40016706

READ MORE 

 UL3316/3323 200℃ 300V silicone rubber insulated electric heating wire

Nominal Voltage：300V
Temperature Range：-40℃~+200℃
O.D. Tolerance：±0.10mm
Testing Voltage：3000V
Conductor：Nickel Alloy
Insulation：Silicone Rubber
Color：White-Blue-Red-Black-Brown-Yellow-Green-Transparent
UL/CUL Certificate No.：E216252

READ MORE 

 Aluminum Conductor Battery Cable Meeting ISO6722-2 Requirements

Type：FLALY、FLAL2G、FLAL2X、FLAL91X
Nominal Voltage：60V
Temperature Range：
FLALY（﹣40℃~+105℃）
FLAL2G（﹣40℃~+200℃）
FLAL2X（﹣40℃~+125℃）
FLAL91X（﹣40℃~+150℃）
Conductor: Aluminum
Insulation：
FLALY：﹣40℃~+105℃ PVC
FLAL2G：﹣40℃~+200℃ SIR
FLAL2X：﹣40℃~+125℃ XLPO
FLAL91X：﹣40℃~+150℃ XLPO
Standard：ISO 6722-2

READ MORE 

 TZ-15、TZX-15

Conductor：Bare or Tinned Copper
Standard：JB/T 6313

READ MORE 

 Single Core High-voltage Unshielded Cable Meeting GMW15626 Requirements

Type：CU-H2PVC(H3PVC)-HV,H2PP,H2EVA;H3XLPO,H3PUR,H3TPE；H4XLPO；H6SIR-HV
Nominal Voltage：600V
Temperature Range：﹣40℃~+105,125,150,200℃
Conductor：Bare Copper
Insulation：105-PVC,PP,EVA;125-PVC，PUR，TPE，XLPO；150-XLPO；200-SIR
Standard：GMW15626

READ MORE 

 Single Core High-voltage Shield Cable Meeting GMW15839 Requirements

Type：((CU-R2PVC：OG)FB)R2PVC:OG-HV /((CU-R3XLPO:OG)FB)R3XLPO：OG-HV
Nominal Voltage：600V
Temperature Range：﹣40℃~+105,125,150,200℃
Conductor： Bare Copper
Insulation/Sheath：105-PVC,PP,EVA；125-PVC，PUR，TPE，XLPO；150-XLPO；200-SIR
Standard： GMW15839

READ MORE 

 TXL GXL SXL low-voltage basic cable for automotive electrical system

Nominal Voltage：60V DC , 25V AC
Temperature Range：125℃
Testing Voltage：1000V
Conductor：Bare or Tinned Copper
Insulation：XLPE
Standard：SAEJ1128

READ MORE 

 Connecting Wire for Automotive Meter Circuits

Nominal Voltage：60V
: FL(R/U)Y（105℃）、FL(R/U)6Y（200℃）、FL(R/U)7Y（180℃）、：FL(R/U)Y（105℃）、FL(R/U)6Y（200℃）、FL(R/U)7Y（180℃）、 FL(R/U)9Y（105℃）、FL(R/U)11Y（125℃）、FL(R/U)31Y（150℃）、 FL(R/U)2X（125℃）、FL(R/U)91X（150℃）、FL(R/U)51Y（250℃）、FL2G（200℃）
Conductor: Bare Copper
Insulation：FL(R/U)Y：PVC， FL(R/U)6Y：FEP, FL(R/U)7Y：ETFE, FL(R/U)9Y：PP, FL(R/U)11Y：TPE-U， FL(R/U)31Y：TPE-S, FL(R/U)2X：XLPO-125, FL(R/U)91X：XLPO-150, FL(R/U)51Y：PFA，FL2G：SIR
Standard：ISO6722-1/GMW15626

READ MORE 

 Single Core Low-voltage Unshielded Cable MeetingLV112-1 Requirements

Type：FLRY,FLR9Y,FLR4G,FLR11Y,FLR31Y,FLR6Y,FLR7Y,FLR51Y
Nominal Voltage : 60V
Temperature Range :﹣40℃~+105,125,150,175,180,250℃
Conductor: Bare Copper
Insulation:105-PVC,PP,EVA；125-PVC,PUR,TPE,XLPO；150-XLPO；175-ETFE；180-SIR,FEP；250-PFA
Standard： LV 112-1

READ MORE 

 AV low-voltage automotive cable

Temperature Range：105℃
Testing Voltage：1000V
Conductor：Bare or Tinned Copper
Insulation：PVC
Standard：JASO D611

READ MORE 

 RG semi-rigid coaxial cables

Inner conductor：silver-plated copper or silver-plated copper clad steel wire
Outer conductor：clad steel wire silver plated copper
Insulator：PTFE
Executive standard：MIL-C-17
Note1：Can according to customer request production of MIL - C - 17 types of semi-rigid cable and other colleagues can according to customer requirements of external conductor tin, silver, etc.For cable outer conductor has a coating, outer conductor diameter increased about 0.01 mm.
Note2：the cable can be supplied from stock disk or straight.Disk availability, length of 11 to 12 m.Straight supply, length is 1 to 2m.

READ MORE 

 SFT semi-rigid coaxial cables

Operating temperature range：
（-55-125）℃ （copper outer conductor）
（-55-165）℃ （tinned copper outer conductor）
（-55-200）℃ （silver-plated copper outer conductor）
Inner conductor：silver-plated copper or silver-plated copper clad steel wire
Outer conductor：clad steel wire silver plated copper
Insulator：PTFE
Executive standard：SJ 50973-1995

READ MORE 

 Semi-flexible coaxial cables

Operating temperature range：（-65-165）℃
Inner conductor：silver-plated copper or silver-plated copper clad steel wire
Outer conductor：tinned copper braid outer conductor of the overall dip tin
Insulator：PTFE
Jacket：FEP、PVC or LSZH
Note1：according to customer requirements characteristic impedance of 35Ω、37.5Ω、42Ω、75Ω and 100Ω cable，etc，while according to the customer asks for a PVC or FEP jacket。

READ MORE 

 SFF-50-3-51/SFF-50-3-52 type flexible coaxial cables

Valid values for maximum continuons operating voltage : SFF-50-3-51 ：1400V ；SFF-50-3-52：900V
Frequency：not more than 3GHz
Ratio：69.5% of the nominal value
DC resistance of inner conductor properties（20℃）：less than 0.064Ω/m Elongation：not less than 1%
Tensile strength：not less than 758N/mm2
Operating temperature range：（-55-200）℃
Inner conductor：silver-plated copper clad steel wire
Outer conductor：silver-plated copper
Insulator：PTFE
Jacket：FEP
Executive standard：SFF-50-3-51 SJ 50973/10 ；SFF-50-3-52 SJ 50973/11-1998

READ MORE 

 SFF-50-2-52-type flexible coaxial cables

Valid values for maximum continuons operating voltage：750V
Frequency：not more than 12.4GHz
Ratio：69.5% of the nominal value
DC resistance of inner conductor properties（20℃）：less than 0.280Ω/m Elongation：not less than 10%
Tensile strength：not less than 345N/mm2
Operating temperature range：（-55-200）℃
Inner conductor：silver-plated copper clad steel wire
Outer conductor：silver-plated copper
Insulator：PTFE
Jacket：FEP
Executive standard：SJ 20103

READ MORE 

 SFF-50-1-51、SFF-50-1-52-type flexible coaxial cables

Valid values for maximum continuons operating voltage :750V
Frequency：not more than 30GHz
Ratio：69.5% of the nominal value
DC resistance of inner conductor properties（20℃）：less than 0.802Ω/m Elongation：not less than 10%
Tensile strength：not less than 345N/mm2
Operating temperature range：SFF-50-1-51-type cable（-55-200）℃ SFF-50-1-52-type cable（-55-230）℃
Inner conductor：silver-plated copper clad steel wire
Outer conductor：silver-plated copper
Insulator：PTFE
Jacket：FEP(SFF-50-1-51)orPFA(SFF-50-1-52)
Executive standard：SJ 20103

READ MORE 

 SFF soild PTFE insulated coaxial cables

Ambliemt temperature：-55℃~200℃（including temperature rise of cable work）
Relative humidity：at 40℃ and up to 98%
Ratio：0.7
Inner conductor：silver-plated copper or silver-plated copper clad steel wire
Outer conductor：silver-plated copper
Insulator：PTFE Jacket：FEP
Executive standard：SJI563

READ MORE 

 JYJ 150℃ XLPE insulated motor winding flexible lead wire

Nominal voltage ：500V
Temperature Range ：150℃
Testing voltage：3KV
Conductor：Tinned copper
Insulation：XLPE
Executive standard：JB/T 6213

READ MORE 

 JYJ 125℃ XLPE insulated motor winding flexible lead wire

Nominal voltage ：500V, 1000V, 3000V
Temperature Range ：125℃
Testing voltage：500V：3KV； 1000V：6KV； 3000V：15KV
Conductor：Tinned copper
Insulation：XLPE
Executive standard：JB/T 6213

READ MORE 

 JG 6000V, 10000V Silicone rubber insulated motor winding flexible lead wire

Nominal voltage ：6000V,10000V Temperature Range ：-40-180℃
Testing voltage：6000V：20KV； 10000V：35KV；
Conductor：Tinned copper
Insulation：Silicone rubber
Executive standard：JB/T 6213

READ MORE 

 JG 500V, 1000V, 3000V Silicone rubber insulated motor winding flexible lead wire

Nominal voltage ：500V, 1000V, 3000V
Temperature Range ：-40-180℃
Testing voltage：500V：3KV； 1000V：6KV； 3000V：15KV
Conductor：Tinned copper
Insulation：Silicone rubber
Executive standard：JB/T 6213

READ MORE 

 WDZ-DCYJB/3-150 Traffic vehicle cable

Nominal voltage ：750V
Temperature Range：150℃
Testing voltage：3.5KV
Conductor：copper conductor
Insulation：XLPE
Executive standard：JB/T 12528

READ MORE 

 WDZ-DCYJ/3-125 Traffic vehicle cable

Nominal voltage ：500V，750V
Temperature Range ：125℃
Testing voltage： 500V：2KV；750V：3.5KV
Conductor：copper conductor
Insulation：XLPE
Executive standard：JB/T 12528

READ MORE 

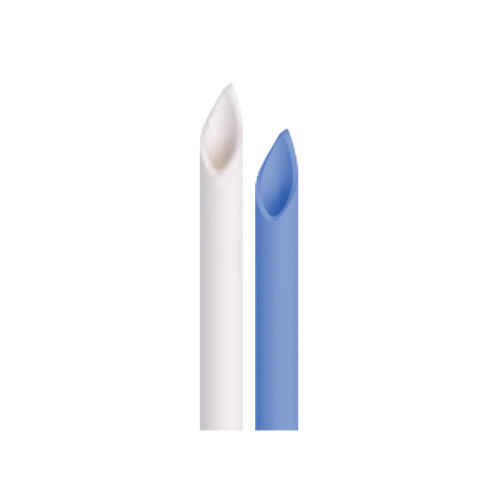

 SR heat resistant silicone rubber sleeve

Nominal voltage：600V
Testing voltage：2.5KV, 4KV, 7KV
Colours：white or according to the customers' requirements
Tested by UL VW-1
UL/CUL Certificate No.：E246632

READ MORE 

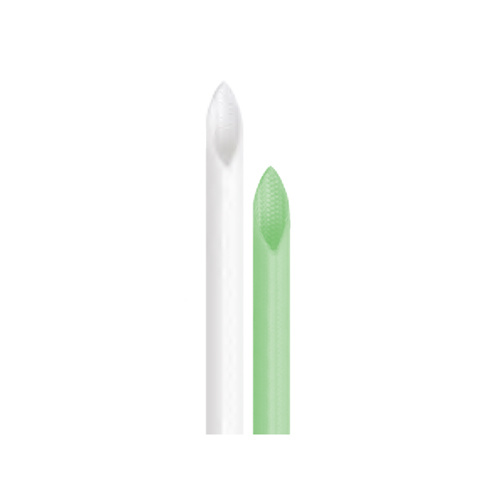

 SRG liquid silicone coated fiberglass braided sleeve

Nominal voltage ：300V
Temperature Range ：-60℃~+200℃
Testing voltage： 4KV, 5KV, 7KV
Colours：white or according to the customers' requirements
Tested by UL VW-1
UL/CUL Certificate No.：E249875

READ MORE 

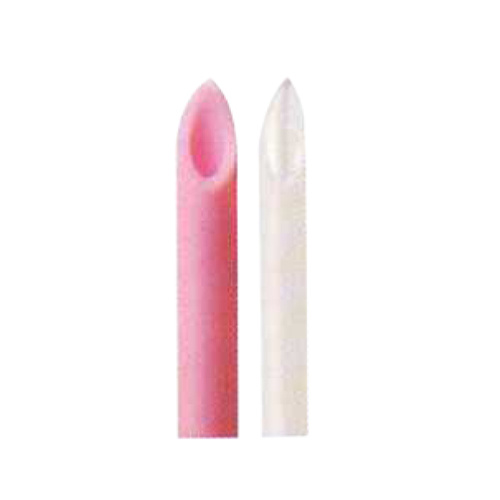

 FSG silicone coated fiberglass braided sleeve

Nominal voltage：300V
Temperature Range：-60℃~+200℃
Testing voltage：4KV, 5KV, 7KV
Colours：white or according to the customers' requirements
Tested by UL VW-1
UL/CUL Certificate No.：E249875

READ MORE 

 FSG FSG silicone coated fiberglass braided sleeve

Nominal voltage：300V
Temperature Range：-60℃~+200℃
Testing voltage：1.2KV, 1.5KV, 2.5KV
Colours：white or according to the customers' requirements
Tested by UL VW-1
UL/CUL Certificate No.：E249875

READ MORE 

 AGR silicone rubber insulated wire

Temperature range：-60℃~+180℃
Nominal voltage：500V
Test voltage：2000V
Conductor：Bare copper or tinned copper
Insulation：Silicone rubber
Colors：White-Black-Brown-Red-Yellow-Blue-Yellow/Green

READ MORE 

 JGGB silicone rubber ribbon cable

Temperature range：-60℃~+180℃
Nominal voltage：1000V
Test voltage：6000V
Conductor：Bare copper or tinned copper
Insulation：Silicone rubber
Colors：White-Black-Brown-Red-Yellow

READ MORE 

 YGZ、YGC silicone rubber insulation flexible cable

Nominal voltage：300V/500V,450V/750V
Temperature range：-60℃~+180℃
Test voltage：2.5KV
Conductor：Bare copper or tin copper
Insulation：Silicone rubber
Jacket：Silicone rubber
Colors：White-Black-Brown-Red-Yellow-Blue

READ MORE 

 Silicone rubber insulation cable

Test voltage：300V/500V
Temperature range-60℃~+180℃
Test voltage：2KV
Conductor：Tin copper
Insulation：Silicone rubber
Jacket：Silicone rubber

READ MORE 

Our main products include

A． Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ; Especially newly developed aluminum conductor battery cables , new energy HV (un)shield cables , will be your good choice for cost saving and light weight.
B． RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , military industry , smart car and etc. for communication ;
C． UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;
D． Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;
E． Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..

View more +

NEWS

Track information, focus on news, and follow Yuanda news in real time

New energy cable

With the transformation of the global energy structure and the booming development of the new energy vehicle industry, new energy cables have gradually become a new favorite in the field of power transmission.

2024-10-16

Silicone rubber wire

Silicone rubber wire has excellent characteristics of high temperature resistance, cold resistance, and flexibility. These characteristics make the electrical performance of silicone rubber wire stable in extreme environments and easy to install, so it has a wide range of applications.

2024-10-16

View more +

CONTACT US

Qingyang town,Jiangyin city,

Jiangsu,China

0086-510-86513128 86518353

jyyd@wxyuanda.com

QR CODE

FEEDBACK

Username used for comment:

客户留言

Description:

* 留言内容：

手机：

邮箱：

* Verification code:

375000

160000

8600000

PRODUCTS

 UL1015 PVC insulated wire

 UL1330/1331 Fluoroplastic insulated wire

 UL3071 silicone rubber insulated and fiberglass braided wire

 UL3604/3644 silicone rubber insulated wire

 UL3173 cross-linked polyolefin insulated wire

 60245 IEC 03(YG) silicone rubber insulated and fiberglass braided wire

 VDE H05SJ-K silicone rubber insulated and fiberglass braided wire

 UL3316/3323 200℃ 300V silicone rubber insulated electric heating wire

 Aluminum Conductor Battery Cable Meeting ISO6722-2 Requirements

 TZ-15、TZX-15

 Single Core High-voltage Unshielded Cable Meeting GMW15626 Requirements

 Single Core High-voltage Shield Cable Meeting GMW15839 Requirements

 TXL GXL SXL low-voltage basic cable for automotive electrical system

 Connecting Wire for Automotive Meter Circuits

 Single Core Low-voltage Unshielded Cable MeetingLV112-1 Requirements

 AV low-voltage automotive cable

 RG semi-rigid coaxial cables

 SFT semi-rigid coaxial cables

 Semi-flexible coaxial cables

 SFF-50-3-51/SFF-50-3-52 type flexible coaxial cables

 SFF-50-2-52-type flexible coaxial cables

 SFF-50-1-51、SFF-50-1-52-type flexible coaxial cables

 SFF soild PTFE insulated coaxial cables

 JYJ 150℃ XLPE insulated motor winding flexible lead wire

 JYJ 125℃ XLPE insulated motor winding flexible lead wire

 JG 6000V, 10000V Silicone rubber insulated motor winding flexible lead wire

 JG 500V, 1000V, 3000V Silicone rubber insulated motor winding flexible lead wire

 WDZ-DCYJB/3-150 Traffic vehicle cable

 WDZ-DCYJ/3-125 Traffic vehicle cable

 SR heat resistant silicone rubber sleeve

 SRG liquid silicone coated fiberglass braided sleeve

 FSG silicone coated fiberglass braided sleeve

 FSG FSG silicone coated fiberglass braided sleeve

 AGR silicone rubber insulated wire

 JGGB silicone rubber ribbon cable

 YGZ、YGC silicone rubber insulation flexible cable

 Silicone rubber insulation cable

FEEDBACK
